Information
Place: Musile di Piave, Venice - Italy
Typology: Steel frame structure
Beginning year: 2014
End year: 2014
Work: structural project and construction site supervision
Project description
This project is about two different seismic blocks called block A an block B.
The building, with bearing structure in steel, has a rectangular plant with dimentions 24x17,5 m and consists of 3 floors above ground. Its height is maximum 9,1 m from the country level.

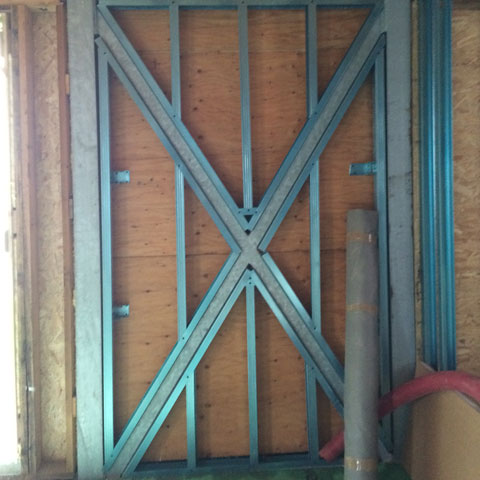

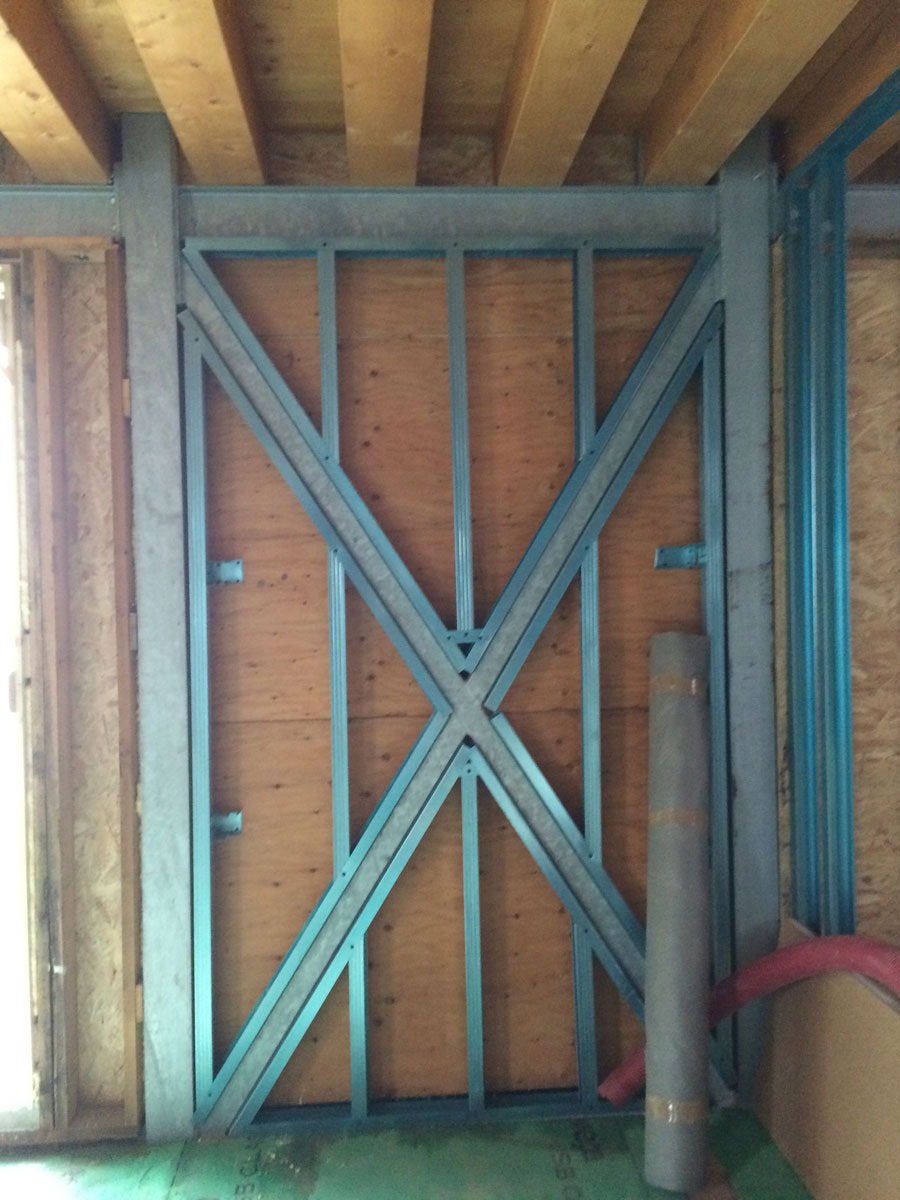

The structure is a concentric braced frame.
- Plants
- Sections

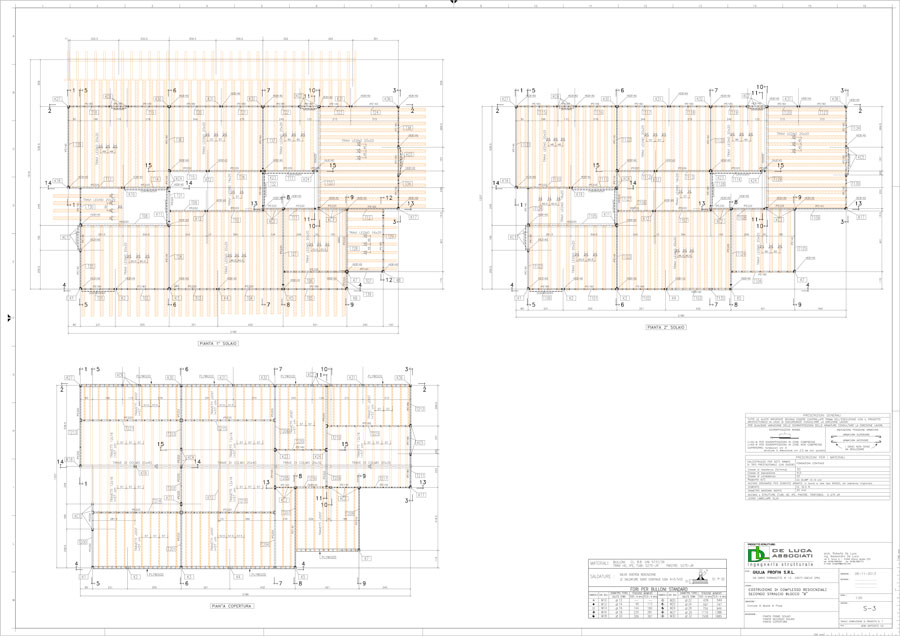

Technical drawings: first plant, second plant, and roof plant.

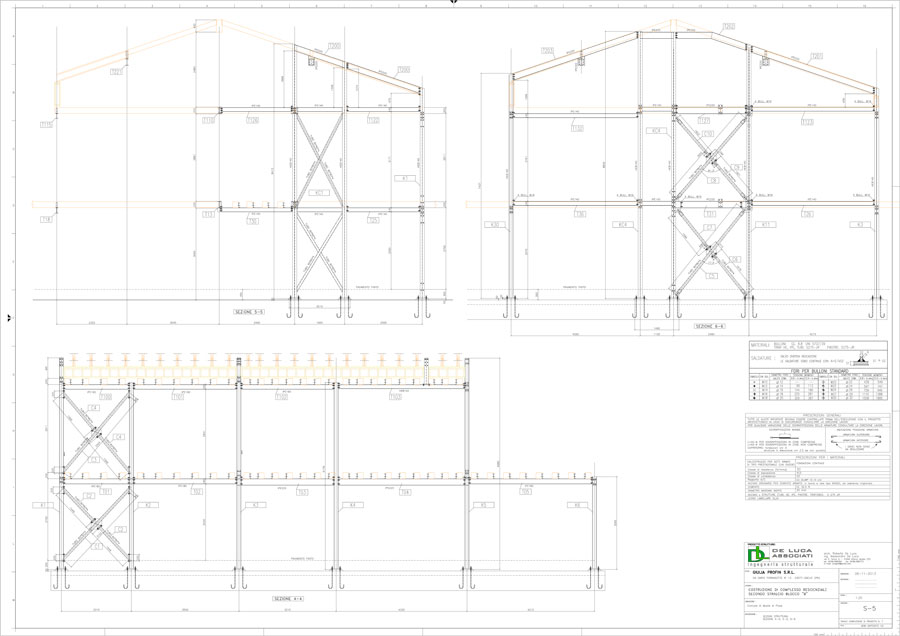

Technical drawings: Section 4-4, section 5-5, section 6-6

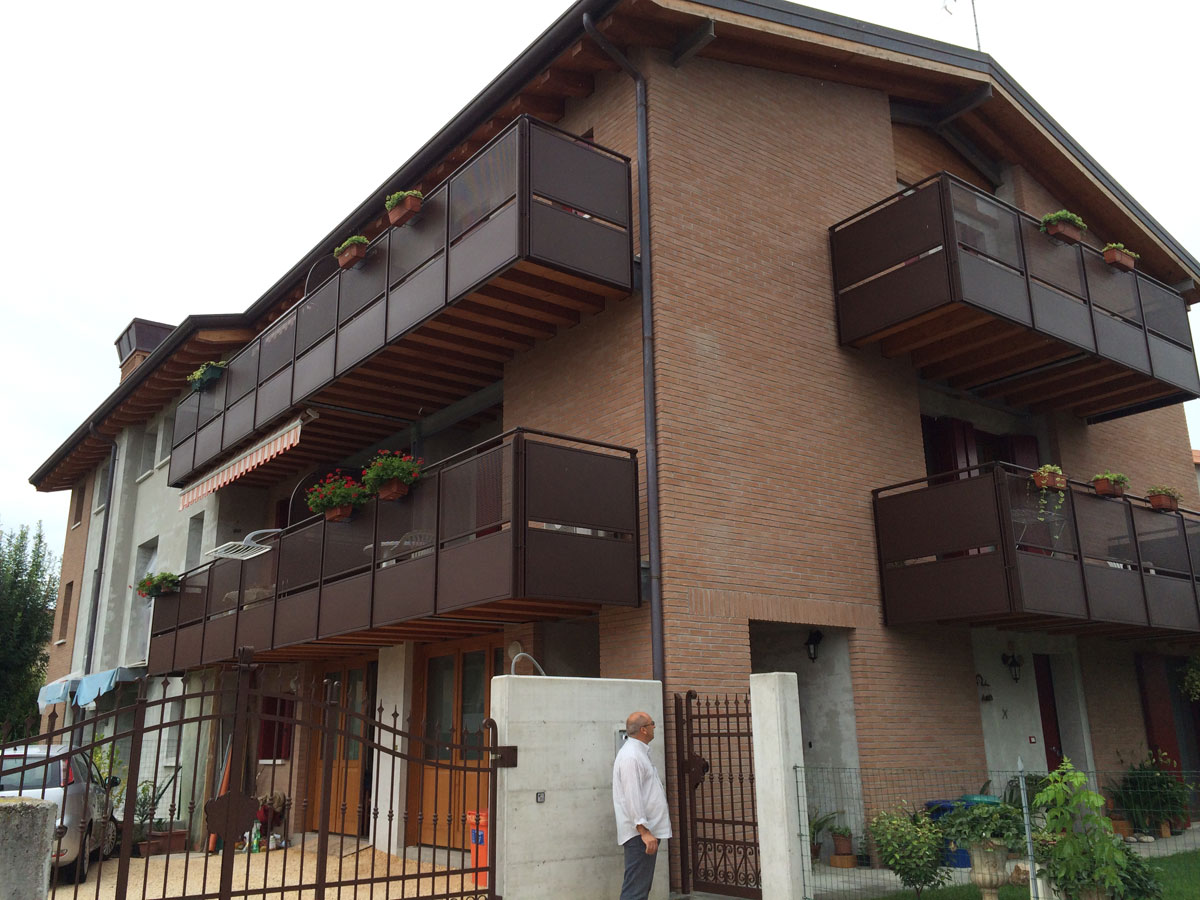

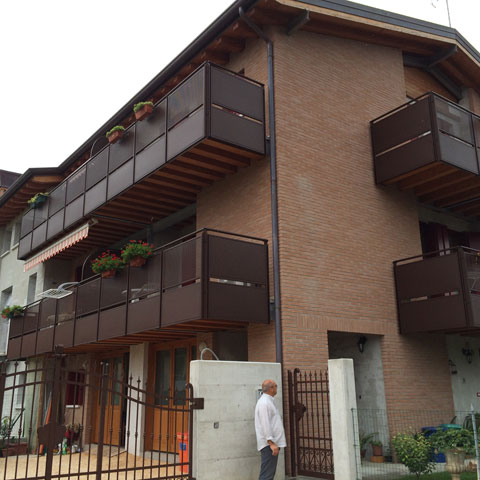

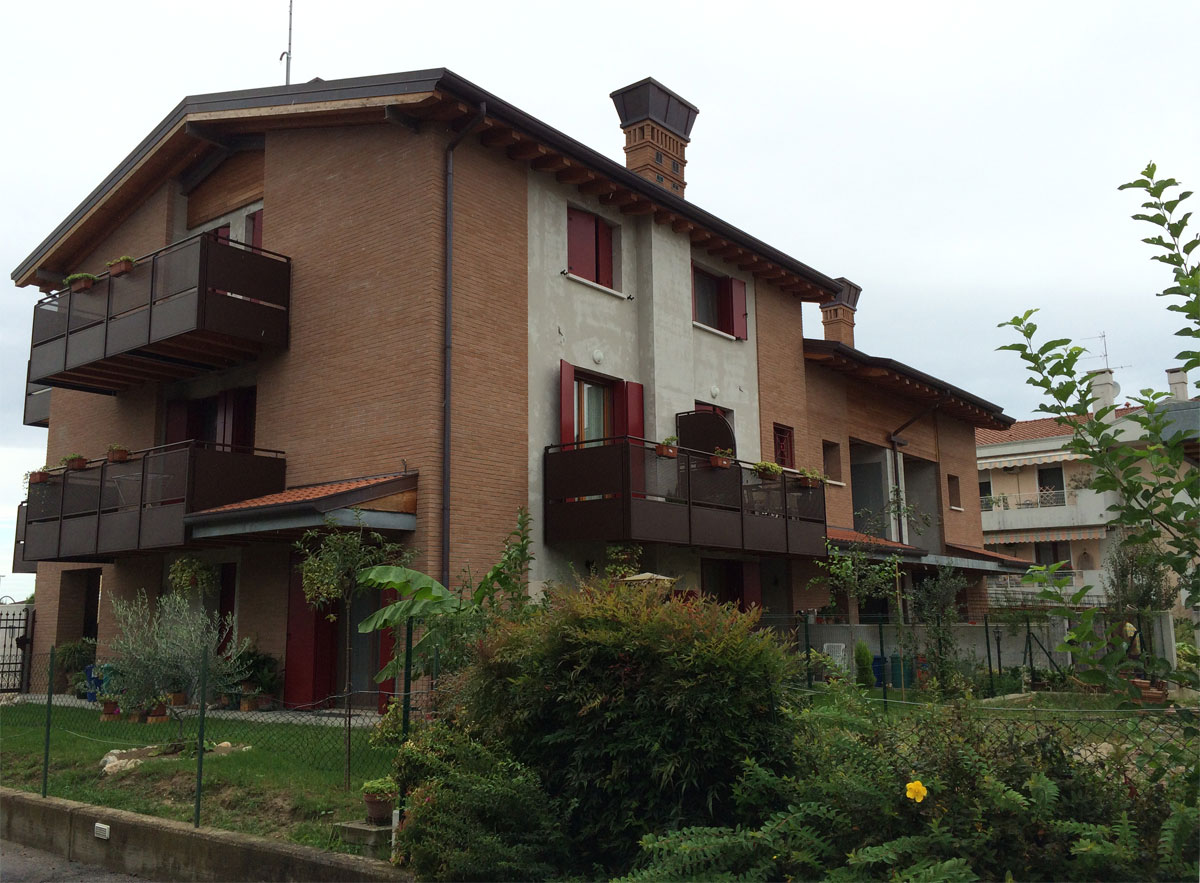

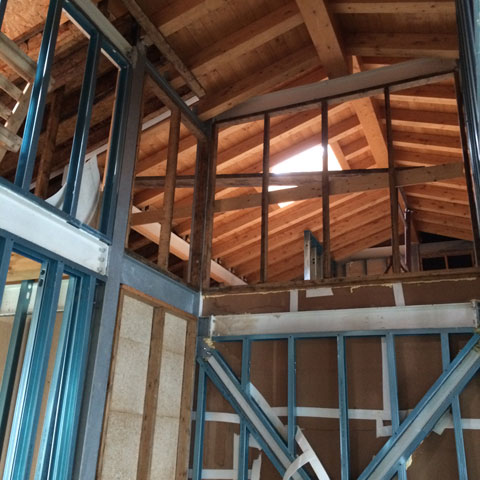

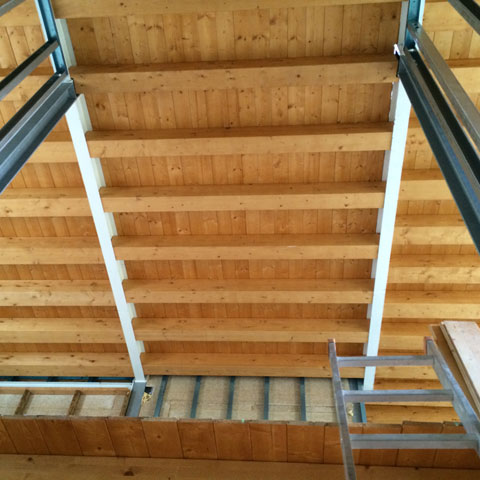

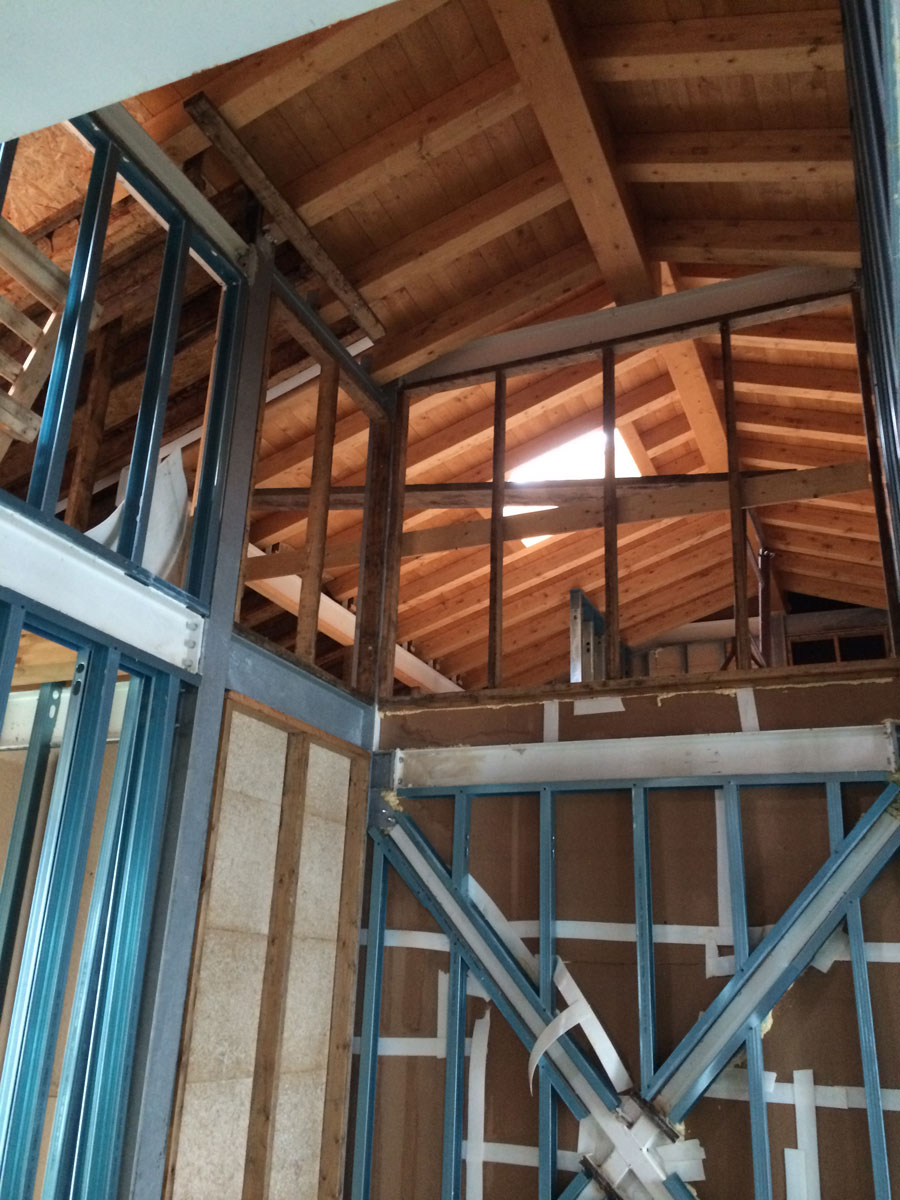

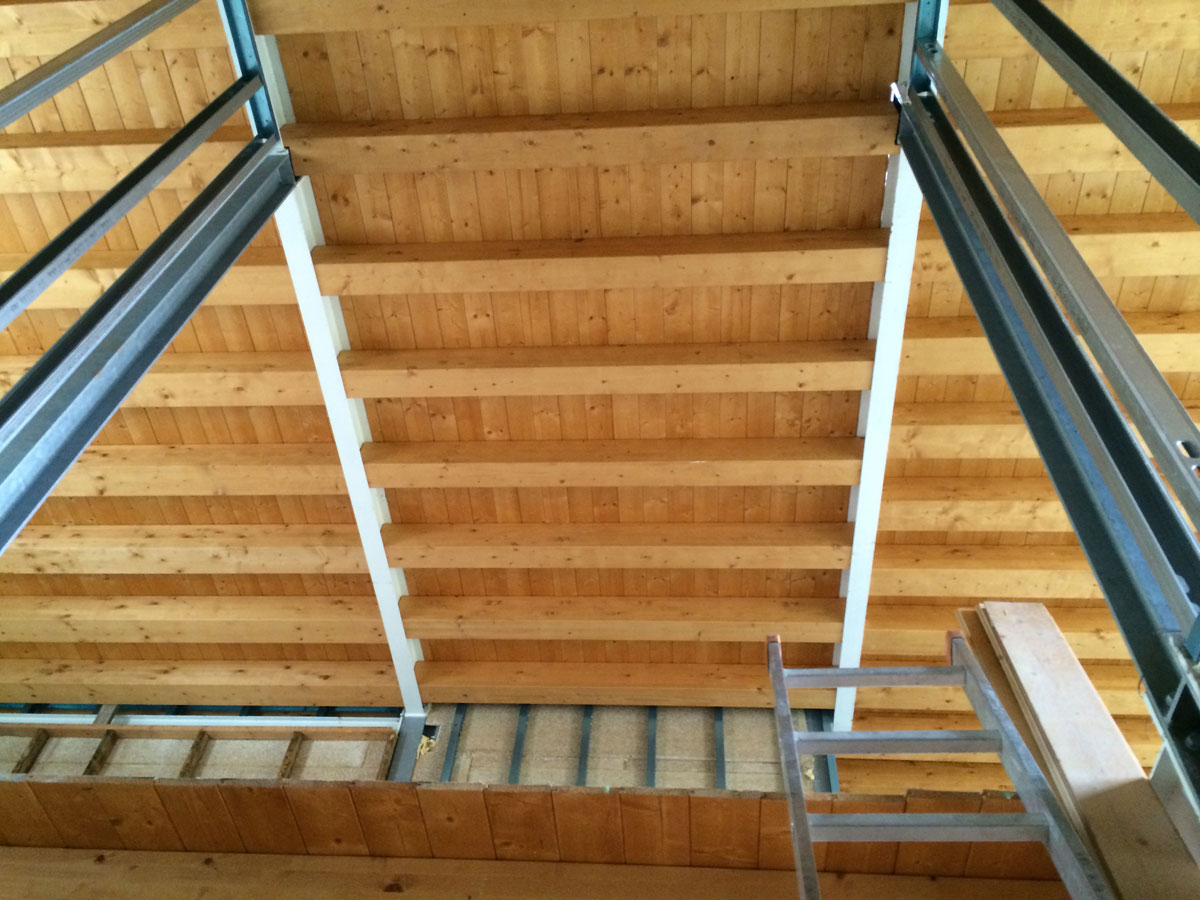

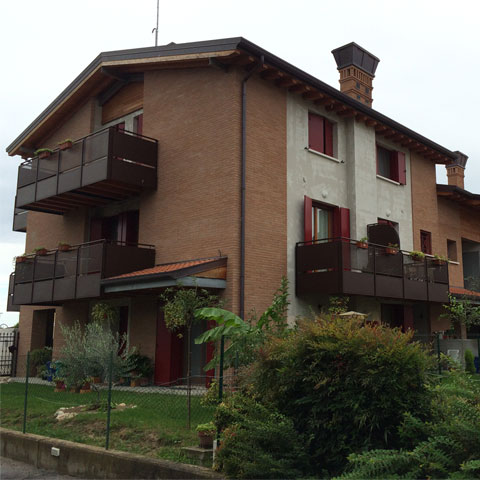

Photo gallery
Here you find some pictures about our projects.
